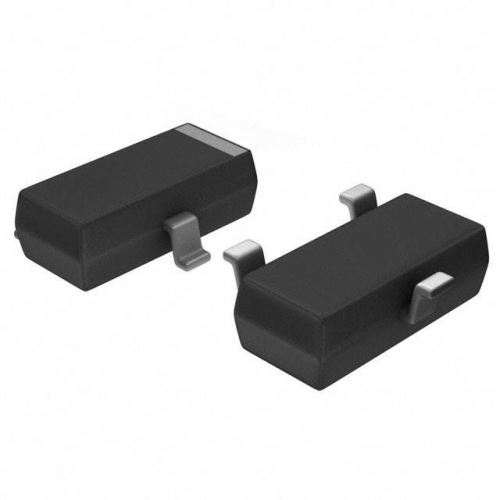

T2N7002BK,LM Images are for reference only, See Product Specifications
T2N7002BK,LM
Part Number
T2N7002BK,LM
Manufacturer
Toshiba
Description
MOSFET N-CH 60V 0.4A SOT23
Category
Discrete Semiconductor Products
Family
Transistors - FETs, MOSFETs - Single
Series
-
Request a Quote
Description
Specifications
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 400mA (Ta) |
| Drive Voltage (Max Rds On,Min Rds On) | 4.5V, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.6nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds Status | 40pF @ 10V |
| Vgs (Max) | ±20V |
| FET Feature | - |
| Power Dissipation (Max) | 320mW (Ta) |
| Rds On (Max) @ Id, Vgs | 1.5 Ohm @ 100mA, 10V |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Factory Pack Quantity | 3000 |
| Condtion | New original factory. |
| RFQ Email | janicelau@megafounderltd.com or Inquires online |
